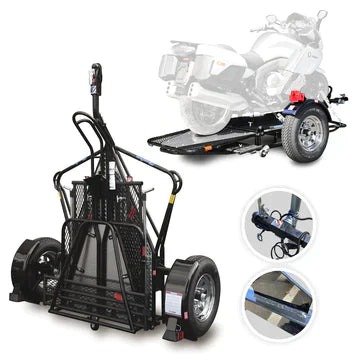

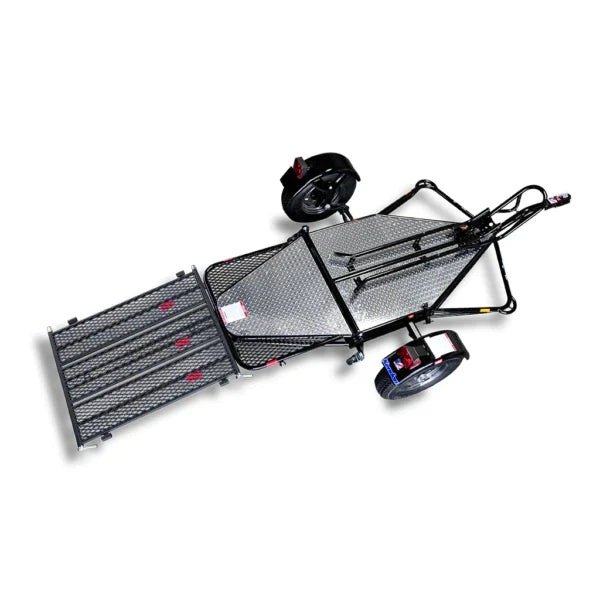

This lightweight, space-saving trailer is designed to carry one full-size motorcycle up to 1,000 lbs. Its innovative suspension system lets you ride your bike onto the trailer easily by compressing under the bike’s weight, eliminating ramp gaps for smooth loading. Wide ramps, extended foot sections, and a sturdy design make loading and unloading safe and manageable for one person.

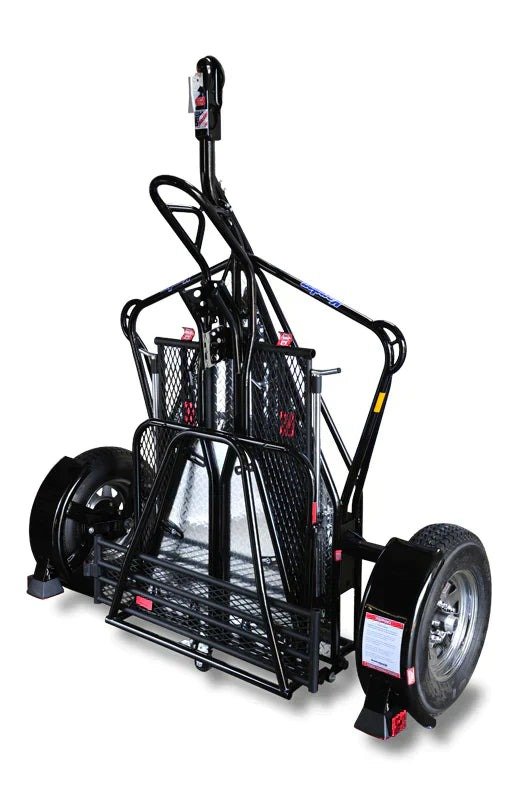

The trailer’s steel frame and aluminum diamond plate deck provide durability and strength, while the heavy-duty torsion-bar axle supports heavy loads. When folded, it takes up minimal space — roughly the size of a small dresser.
Perfect for all motorcycle types — cruisers, sport bikes, adventure, or touring — this trailer offers convenience, safety, and reliability for any rider.
Specifications
Model: Single Rail Ride-Up SRL Trailer
Color: Black (Powder Coated)
Frame Material: Steel Tubing
Deck Area: 35″ x 84″ (diamond front, rounded square rear)
Deck Type: Aluminum Diamond Plate / Expanded Metal
Deck Height: 13″
Weight: 340 lbs
Load Capacity: 1,000 lbs
Overall Length: 114″ (without ramp), 157″ (with ramp)
Width: 72″
Standing Depth: 27″
Standing Height: 84″
Max Bike Length (front tire to rear axle): 96″
Width Between Fenders: 54″
Ramp: 3-piece, 45″ x 33″ total
Wheel Size: 13″ radial tires (ST175/80R13)
Wheel Type: 8-Spoke Chrome/Steel
Wheel Bolt Pattern: 5-on-4½”
Hitch Class: Class 2 or higher recommended
Hitch Height: 19″ – 21″
Coupler: Requires 2″ ball
Electrical Connector: 4-pin flat
Suspension: Independent torsion suspension
Suspension Mounts: Double mounting brackets
Hubs: Removable spindle – SuperLube
Tongue Weight: Approx. 10-15% of total load
Capacity: One cruiser, sport, adventure touring, dual sport, dirt bike, or cargo
